DiMAC Digital Microscope Software System
Software Features Overview
Basic Features
- ✓ Basic Measurement
- ✓ Smart Report
- ✓ EFI
- ✓ MIA
Advanced Features
- ✓ IMC
- ✓ Penetration Inspection
- ✓ Particle Statistics

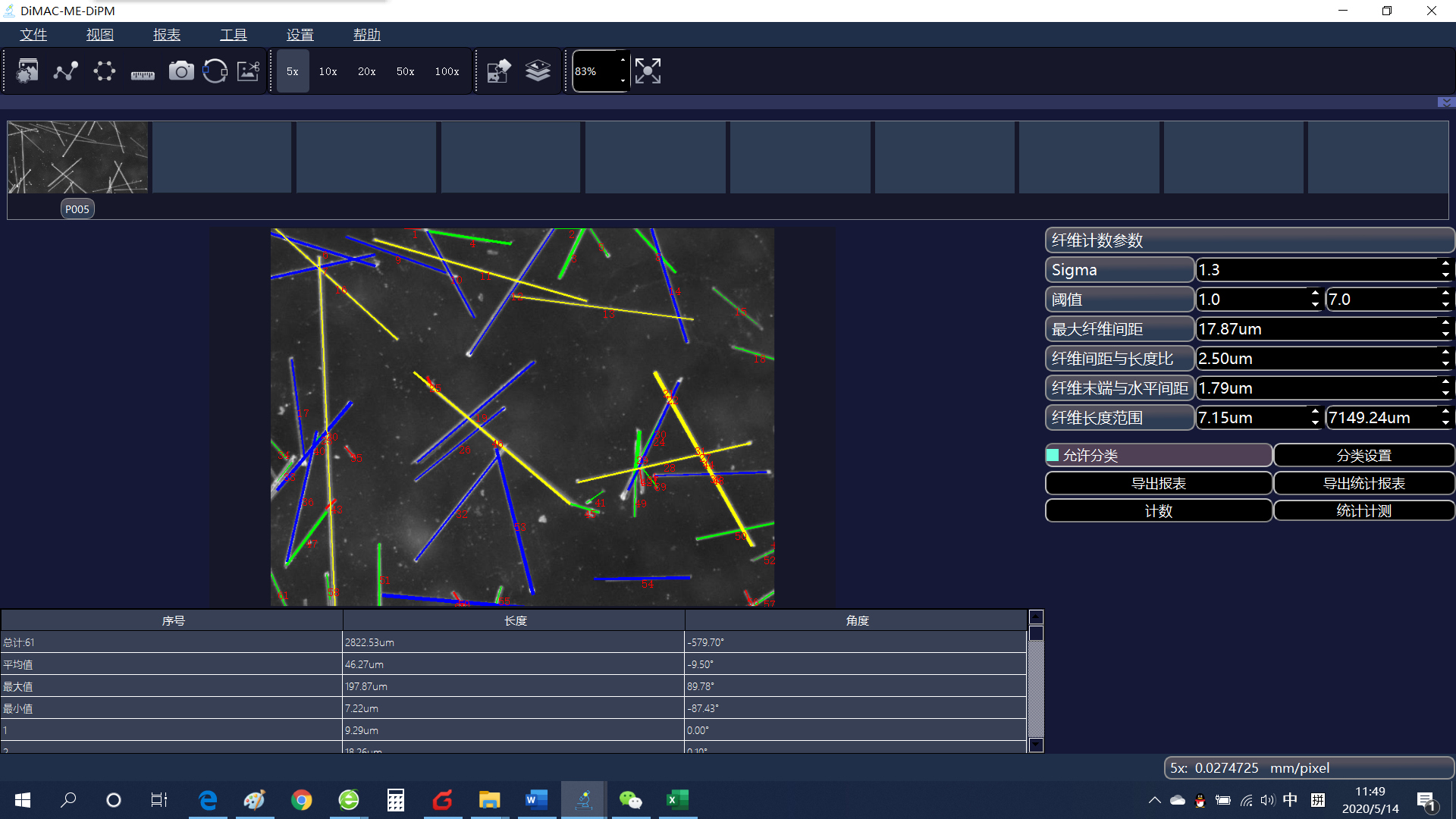

- ✓ Fiber Statistics
Hardware Compatibility
Supported Camera Systems
Supports cameras from one million pixels to scientific camera.
Core Technologies
Image Acquisition
- ✓ Single field Image
- ✓ Multiple Image Alignment(MIA)
- ✓ Extensible Firmware Interface(EFI)

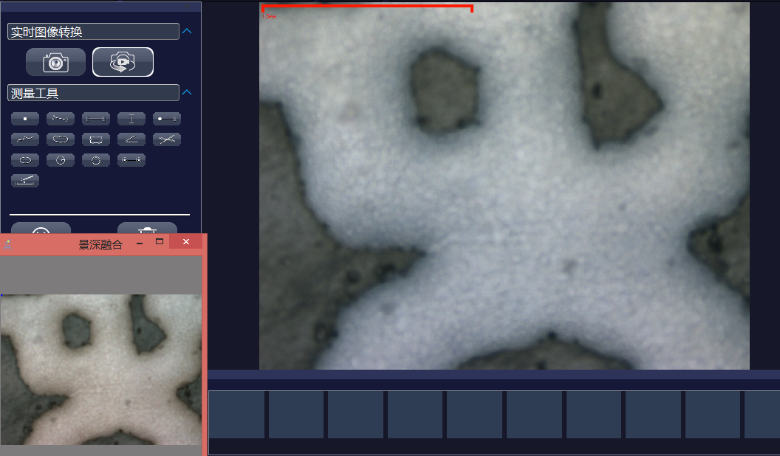

Automated Extended Focus Imaging (EFI)
EFI technology automatically combines multiple images taken at different focus depths to create a single fully-focused image, perfect for specimens with varying surface heights.
Automated Multiple Image Alignment (MIA)
MIA technology automatically stitches together multiple images to create a panoramic view of specimens larger than a single field of view.

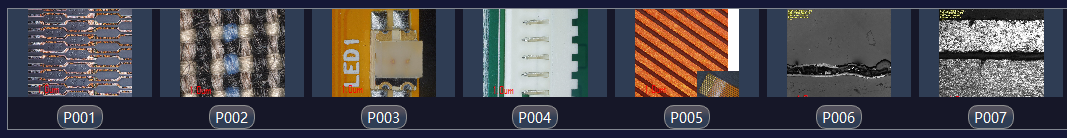

Image Gallary
- ✓ Unique image database function, allowing real-time measurements to be taken and then photographed and saved.
- ✓ According to the user’s habit of use of self-operation, strong flexibility
Measurement Capabilities

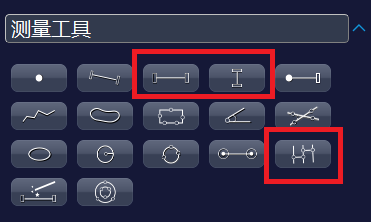

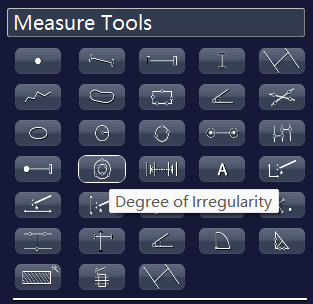

Comprehensive Measurement Tools
- ✓ Rich collection of measurement tools
- ✓ PCB industry-specific measurement tools
- ✓ Customizable measurement functions

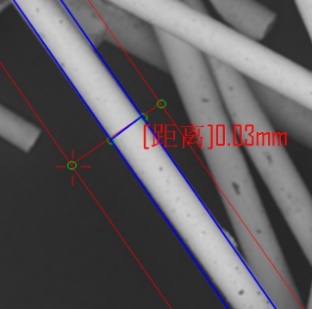

- ✓ Specialized automatic line measurement

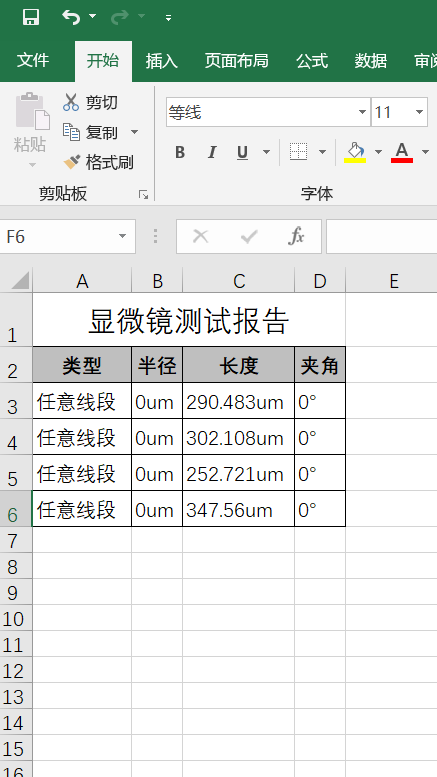

Intelligent Reporting System
- ✓ Three conventional output methods
- ✓ One key multi-graph and multi-data exporting
- ✓ Intelligent automatic data export function
Specialized Analysis Modules

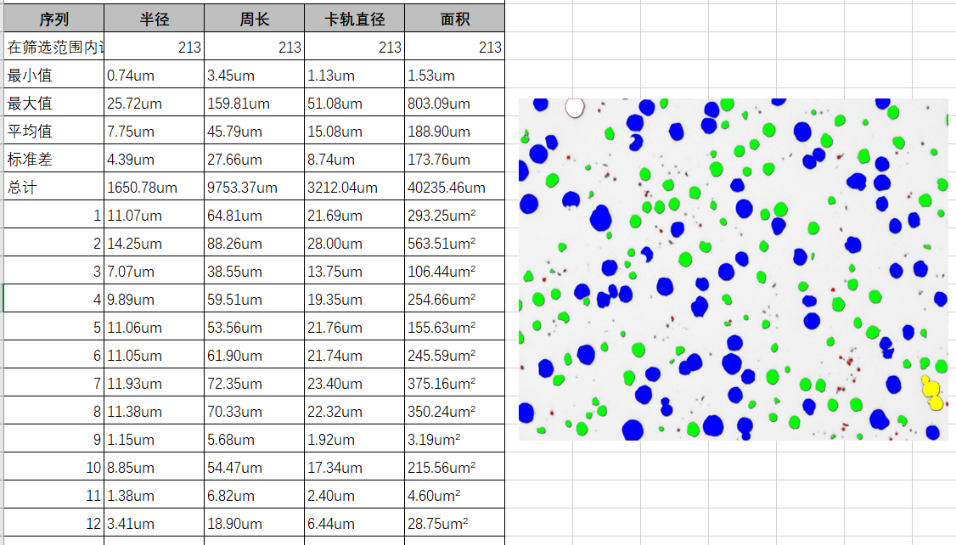

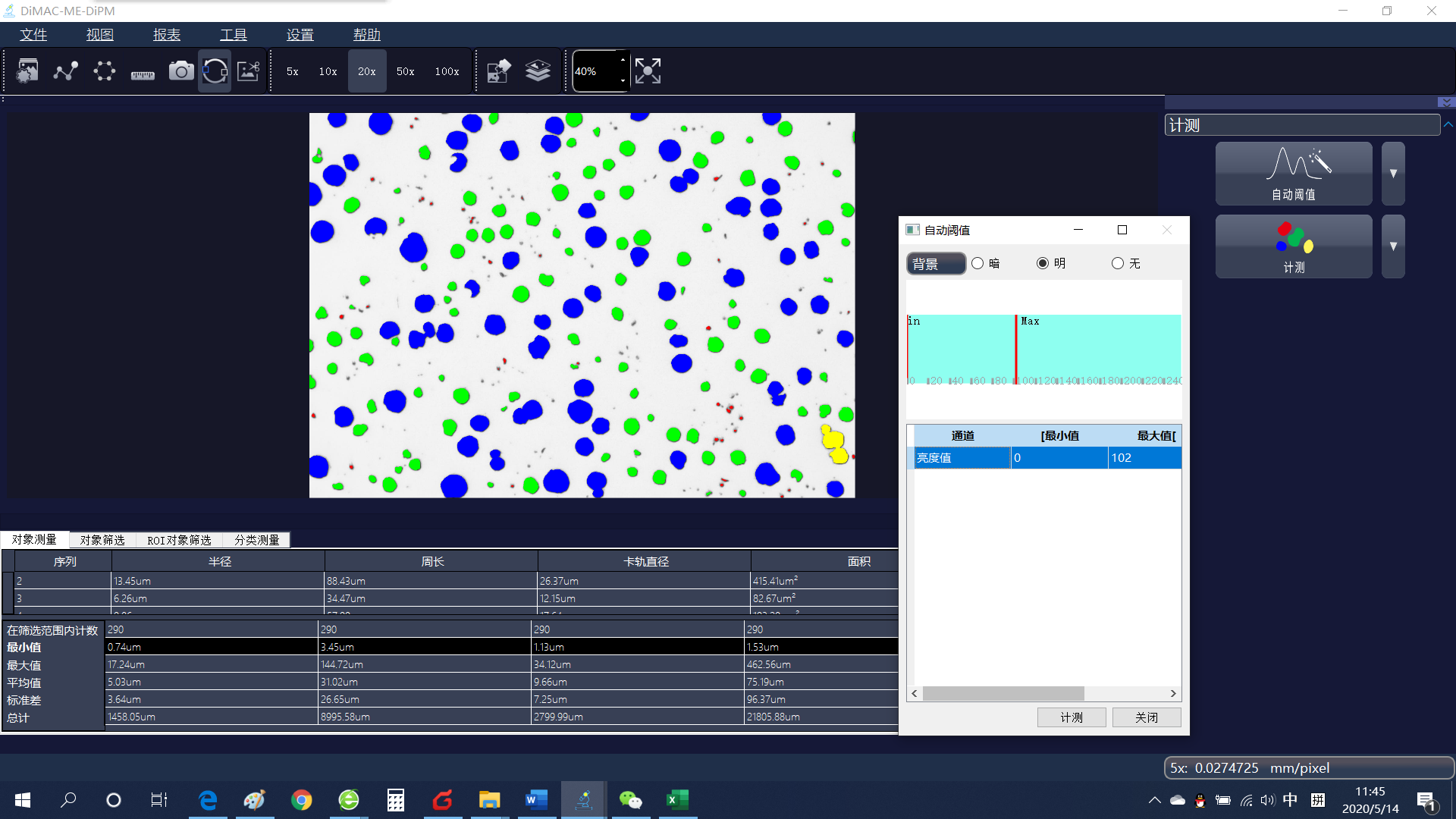

Particle Counting and Classification
Advanced algorithms automatically identify, count, and classify particles based on size, shape, and other parameters.
 |  |
|---|---|
| Size Distribution Analysis | Shape Classification |

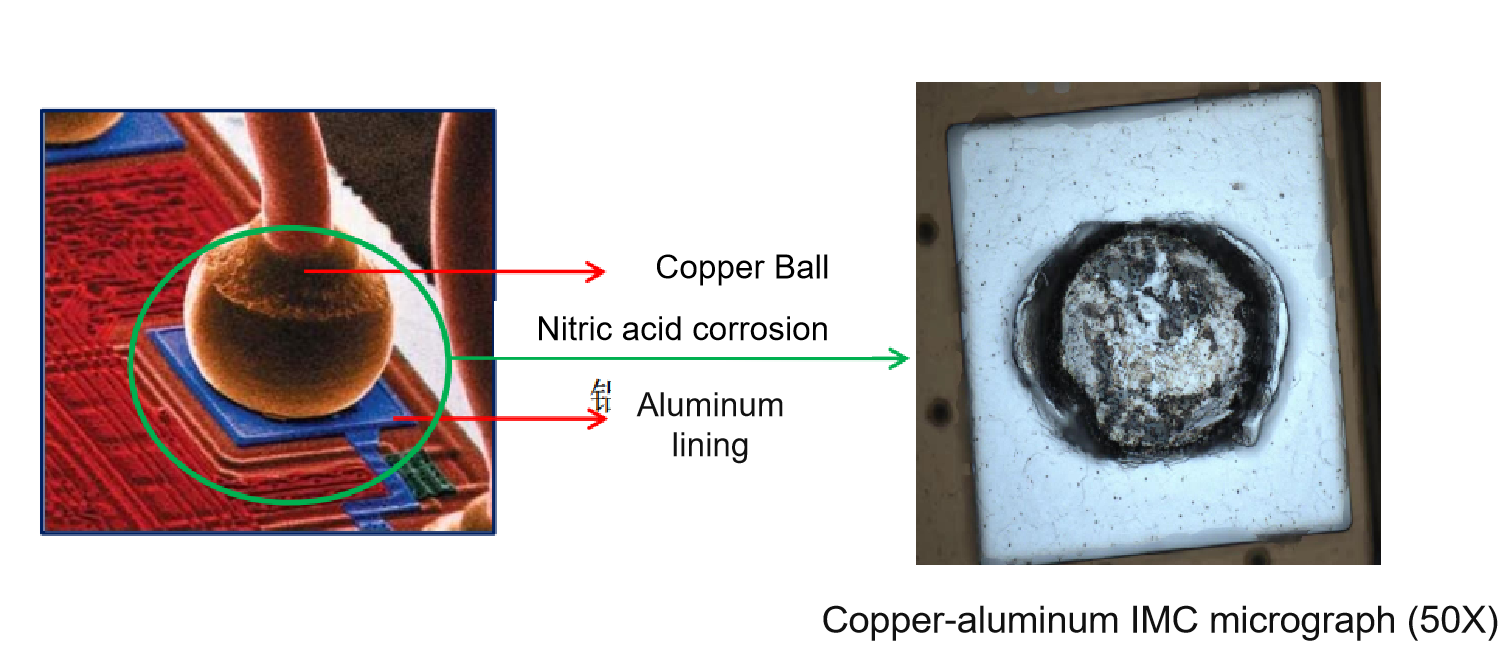

Semiconductor IMC Measurements
Specialized module for analyzing Intermetallic Compound (IMC) layer bonding area as a percentage of pads, critical for semiconductor quality control.

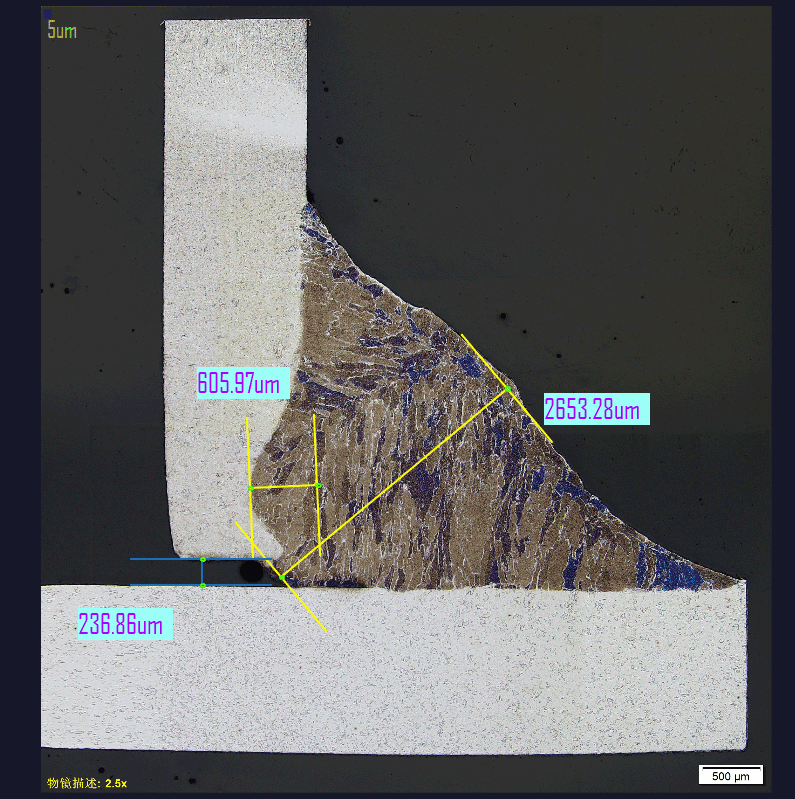

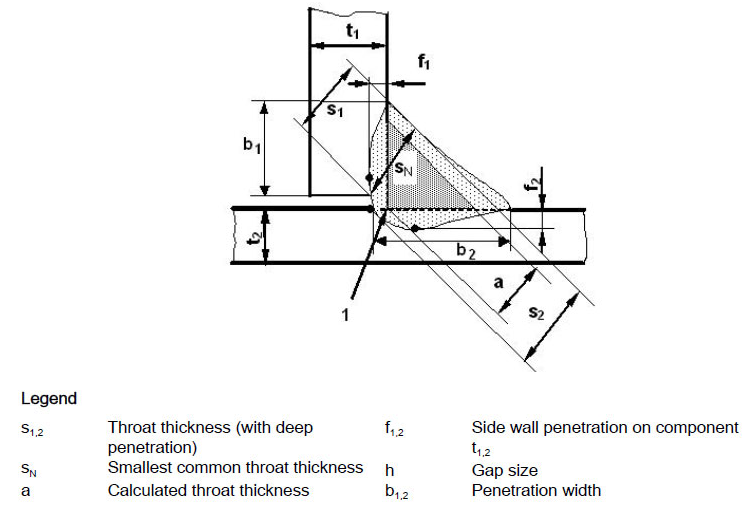

Penetration Inspection
- ✓ Exclusive Measurement Tools
- ✓ Rich Auxiliary Line
- ✓ Professional Report

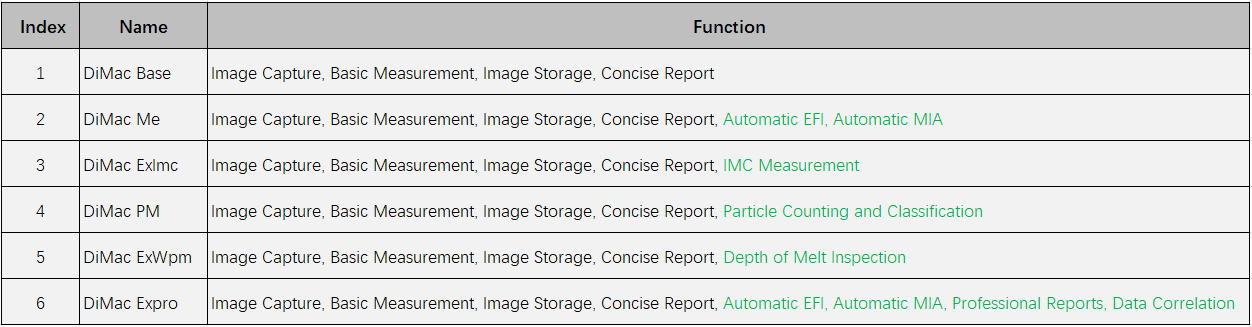

Series version
Note: The module can be used in combination with the main body according to customer needs. Special reminder: the module cannot be used alone.
