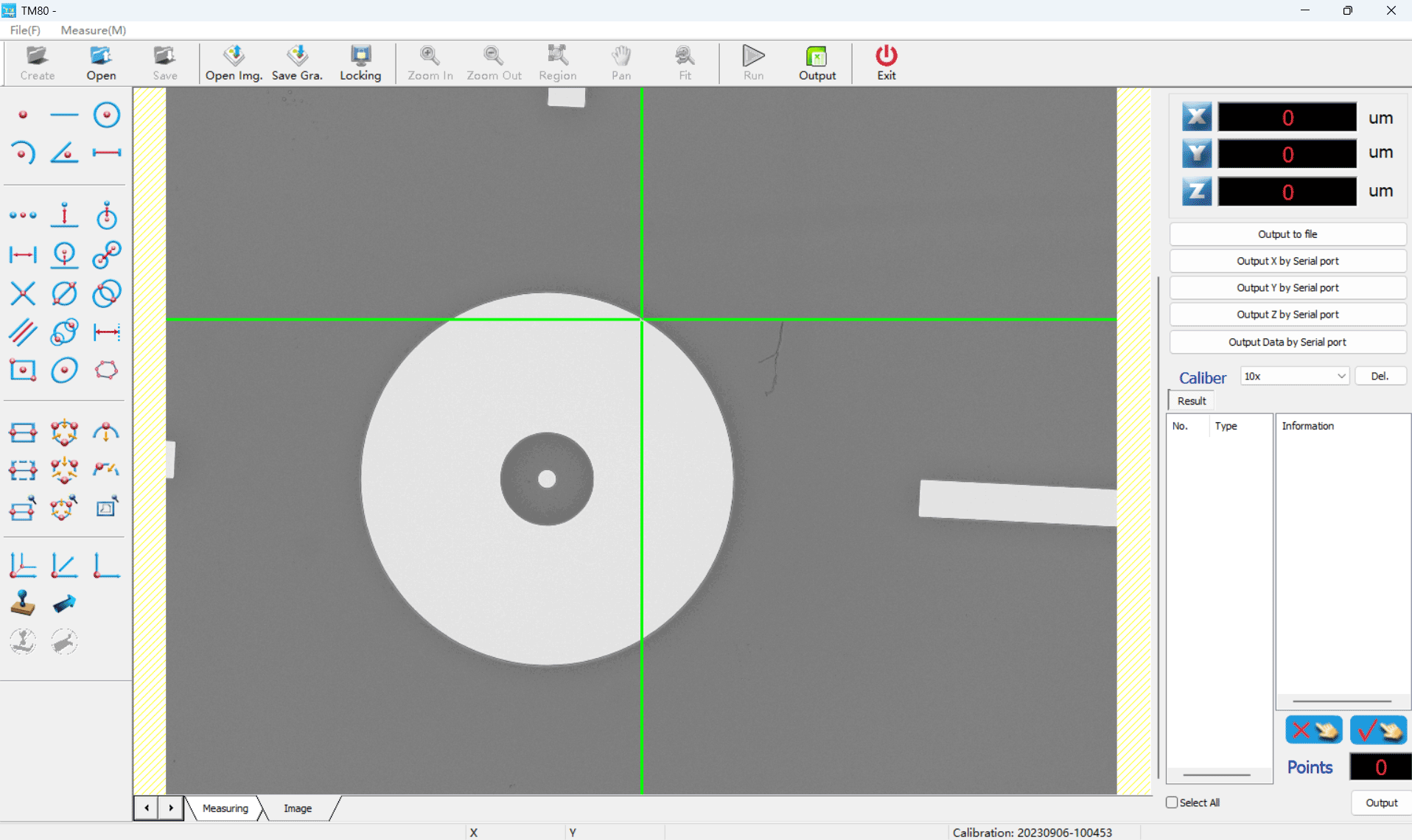

TM80 - Precision Image Measurement Software

Application Scenarios

• Precision Measurement:
  • Precision mechanical manufacturing (precision molds, complex components)
  • Automotive industry
  • Aerospace
• Microscopic Measurement:
  • Semiconductor industry
  • Material analysis

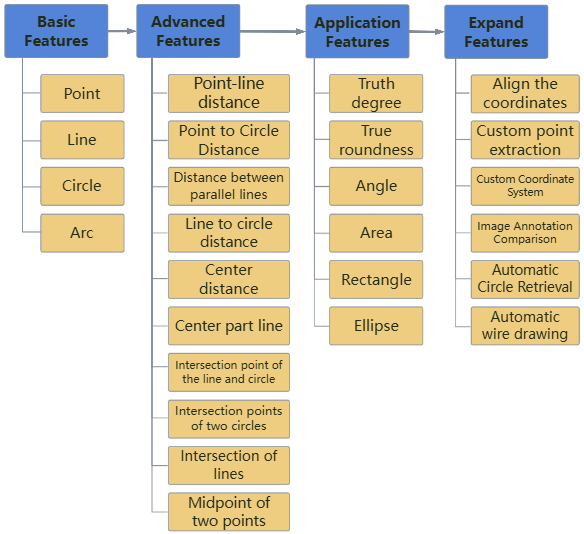

Rich Measurement Tools

Measurement Methods

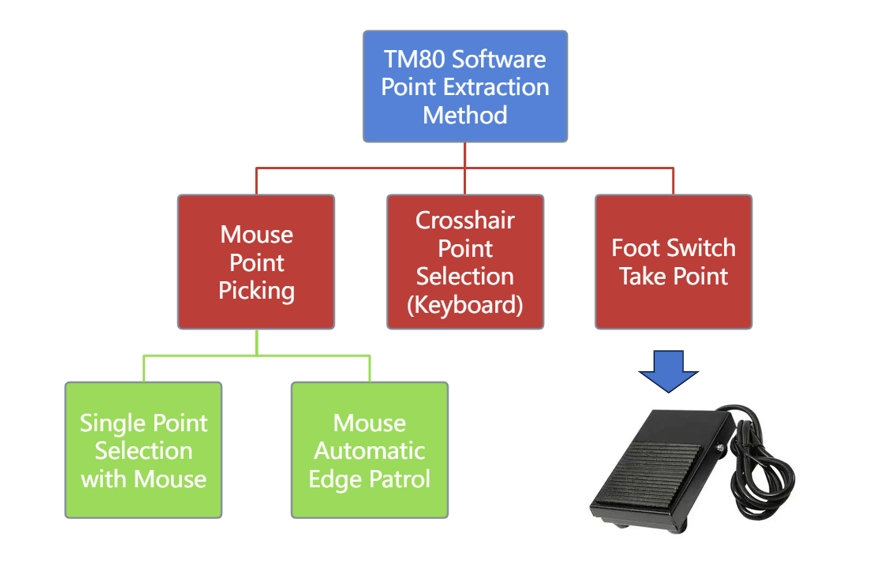

Three Methods of Sampling Points

Custom Coordinate System

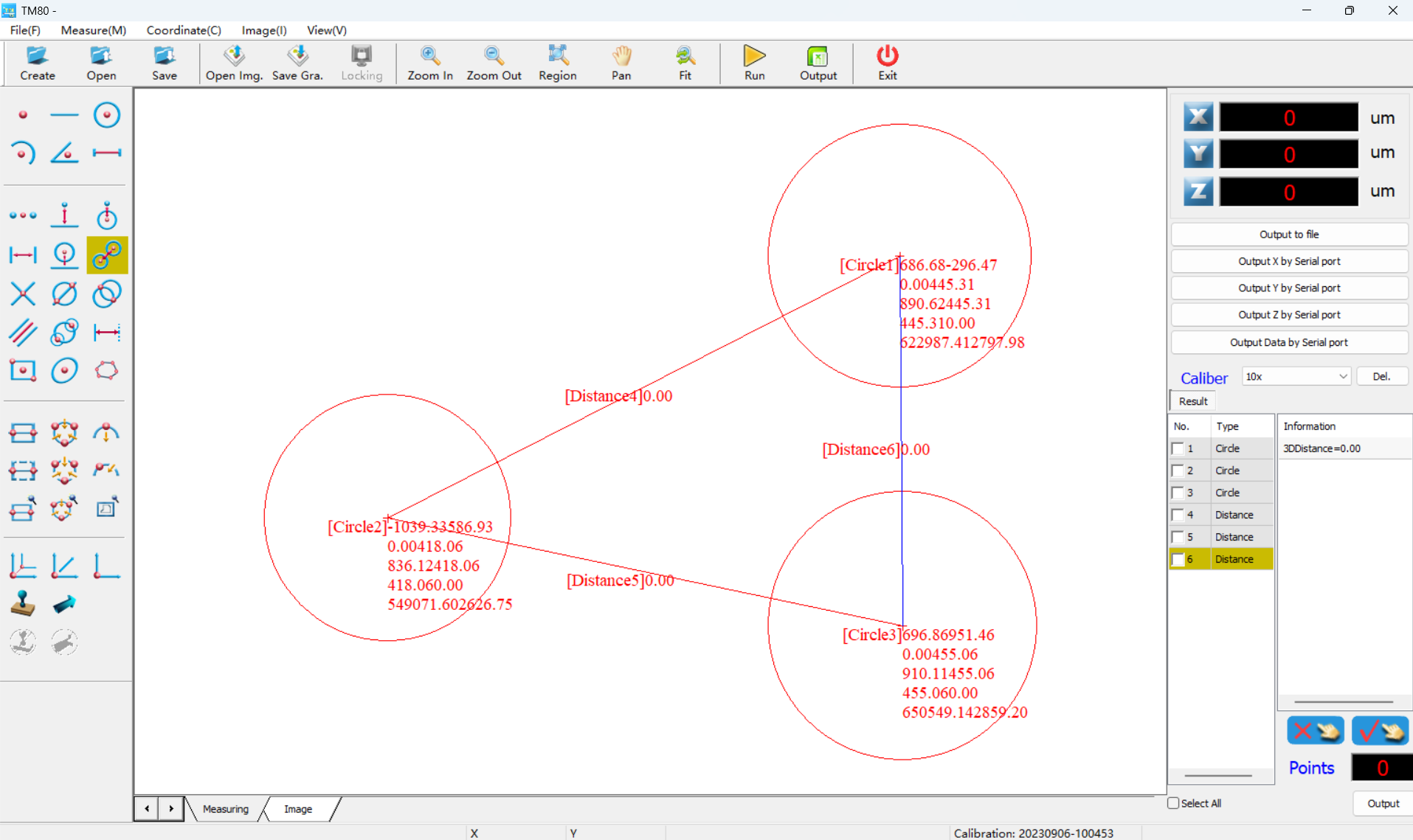

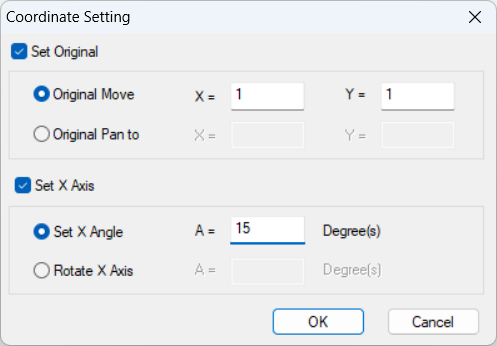

Measurement-based coordinates	Self-set coordinates
Establish a coordinate system based on the measured elements	Establish a coordinate system based on self-set coordinates

Productivity Features

Macro Functions

• Improve the measurement efficiency of bulk products
• Create automated measurement sequences
• Save and reuse common measurement tasks

Result Export Options

• Save Measurement Image
• Export Measurement Data
• Custom Export Format: txt, excel

Multi-language Support

• 中文 (Chinese)
• English
• 日本語 (Japanese)

Hardware Compatibility

• Camera:
  • Supports DirShow camera input format
  • AVT infrared camera

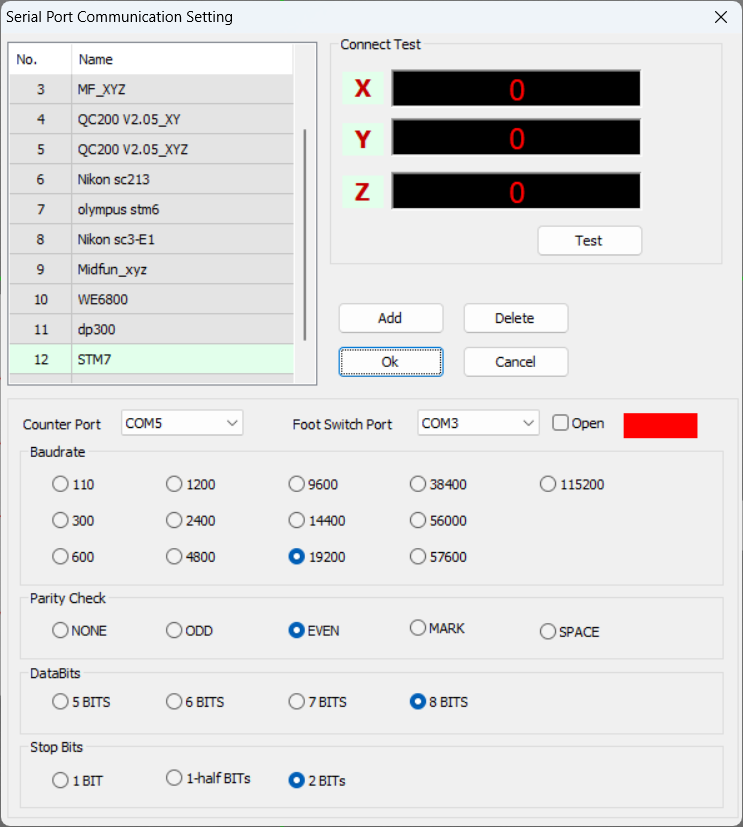

• Counter:
  • Common brands of Counter
  • Custom communication formats
